Common questions

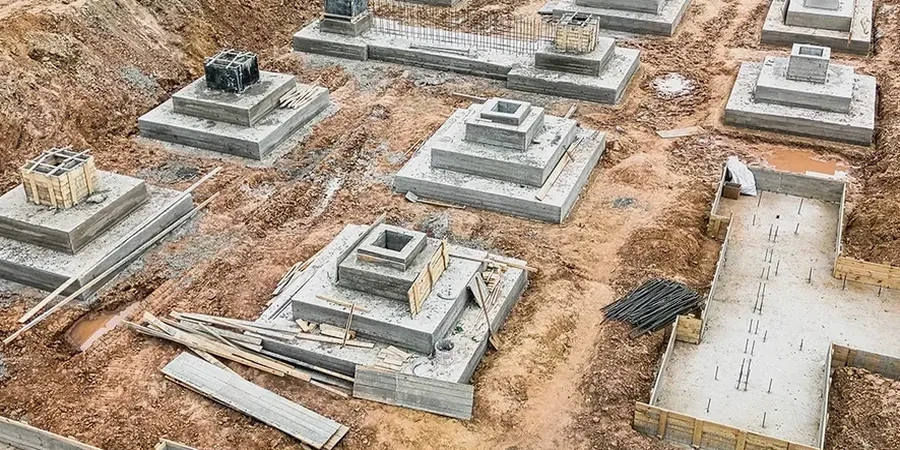

How does the NYC Building Code Chapter 18 affect pile foundation design?
Chapter 18 governs geotechnical investigations, allowable bearing pressures, and deep foundation requirements within the five boroughs. It mandates a minimum number of borings based on building footprint, requires bedrock coring when piles socket into rock, and sets the load test requirements—typically one static load test per 200 piles or one dynamic test per 100 piles, with the final testing program to be approved by the Department of Buildings. The code also references IBC and ASCE 7 for load combinations and resistance factors, so our designs align with all three documents simultaneously.
What type of pile is most common in Manhattan versus the outer boroughs?
In Manhattan, drilled shafts socketed into Manhattan Schist dominate the high-rise market because the rock is relatively shallow and provides excellent end-bearing capacity. H-piles are also used where obstructions make drilling difficult. In the outer boroughs, particularly in areas with deep glacial deposits like Long Island City or Williamsburg, driven closed-end pipe piles and auger-cast piles are more common because the bearing stratum is deeper and the soils are more uniform, allowing for efficient installation without rock drilling.
How do you account for buried obstructions in New York City during pile design?
We begin with a thorough review of historical Sanborn maps, DOB records, and any available geotechnical reports from adjacent properties to identify former foundations, bulkheads, and underground storage tanks. During the investigation phase, we may specify air-track drilling or downhole geophysics to detect obstructions. In the design, we select pile types and installation methods that can handle anticipated obstructions—for example, specifying pre-augering through fill zones or using heavy H-pile sections that can penetrate timber debris without damage.
What does pile foundation design typically cost for a New York City project?
The design fees for a pile foundation package in New York City generally range from US$1,540 to US$6,180, depending on the number of pile types, the complexity of the soil profile, and whether the project requires a full lateral analysis with LPILE or GROUP models. A straightforward residential project with a single pile type and good soil data falls on the lower end, while a mixed-use tower with multiple pile groups, complex rock socket designs, and seismic analysis falls on the higher end.
What is the difference between LRFD and ASD design for piles in New York?
The IBC and AASHTO now require Load and Resistance Factor Design (LRFD) for all deep foundations, though Allowable Stress Design (ASD) is still accepted for some smaller projects under the NYC Building Code. LRFD applies separate load and resistance factors to account for uncertainty in both sides of the equation, typically resulting in more efficient pile lengths when site variability is well-characterized. We provide both formats in our submittals, with the LRFD calibration following the regionally specific resistance factors recommended by AASHTO and the deep foundations manual.
