CPT Testing in New York City: Accurate Subsurface Data for Complex Urban Sites

New York City sits on a deceptively complex glacial legacy. The terminal moraine that shaped Long Island and Staten Island left behind erratic deposits of till, varved clays, and outwash sands that shift radically within a single city block. When a Midtown developer hits compressible organic silt at 15 feet where the boring log predicted medium dense sand, the schedule impact runs into six figures. We rely on CPT as the primary screening tool for these conditions. A cone penetration test in New York City delivers continuous resistance data without the sample disturbance that plagues split-spoon methods in sensitive varved clays. In neighborhoods like Greenpoint or the South Bronx—areas with historical fill and undocumented bulkheads—the friction ratio and pore pressure readings from in-situ permeability testing become essential for distinguishing natural deposits from anthropogenic material before excavation begins.

In New York’s glacial stratigraphy, a 5-foot shift in the compressible layer boundary can change the foundation recommendation from shallow footings to driven piles.

Our service areas

How we work

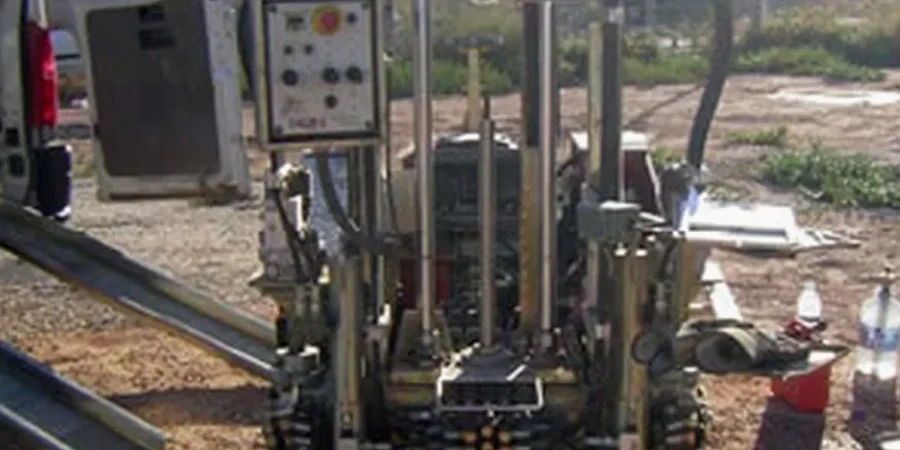

The thermal extremes and coastal humidity of the New York metro area impose specific demands on cone equipment. Summer temperatures above 95°F can cause saturation fluid viscosity shifts in piezocone systems if not calibrated against the morning baseline. Our field protocol accounts for this. Each CPT sounding records tip resistance, sleeve friction, and dynamic pore pressure at 2 cm intervals, generating a near-continuous profile that ASTM D5778 classifies into soil behavior types. The real advantage in New York City is depth capacity: we routinely push to 100 feet in the glacial outwash of Jamaica, Queens, and exceed 120 feet in the serpentinite bedrock transition zones of Staten Island’s North Shore. The data stream flags thin drainage layers—sometimes only 4 inches thick—that control consolidation rates under mat foundations. For deep foundations in the Manhattan schist, we pair CPT with seismic cone modules to measure shear wave velocity directly, eliminating the need for separate crosshole surveys in tight access conditions.

CPT Testing in New York City: Accurate Subsurface Data for Complex Urban Sites — Technical reference — New York

Local considerations

The most expensive mistake on a New York City jobsite is excavating based on boring logs alone in areas of uncontrolled fill. We have seen projects in Long Island City where a 30-foot layer of coal ash and demolition debris—completely missed by standard split-spoon sampling at 5-foot intervals—was only identified when the cone penetration test showed a friction ratio spike to 5% with zero effective cohesion. The contractor had already mobilized sheet pile rigs. The redesign added eight weeks to the schedule. In lower Manhattan, the risk shifts to groundwater: a piezocone dissipation test often reveals artesian conditions in the varved clay aquitard that overlies the bedrock depression near Canal Street. Misreading the pore pressure profile means the difference between a dry excavation and a flooded one. The IBC requires a geotechnical investigation that adequately characterizes subsurface variability—CPT provides the continuous data that intermittent sampling cannot.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.vip

Regulatory framework

ASTM D5778-20 (Standard Test Method for Electronic Friction Cone and Piezocone Penetration Testing of Soils), ASTM D2487-17 (Standard Practice for Classification of Soils for Engineering Purposes), IBC 2021 (International Building Code, Chapter 18), ASCE 7-22 (Minimum Design Loads, Chapter 20 on Site Classification)

Reference parameters

Parameter	Typical value
Standard followed	ASTM D5778-20
Maximum push capacity	20 tons (200 kN)
Typical depth in glacial deposits	80 to 120 ft
Measurement interval	2 cm (0.8 in)
Parameters recorded	qc, fs, u2, friction ratio
Soil behavior type classification	Robertson (1990) updated
Pore pressure dissipation test duration	As required (t50 analysis)

Common questions

How much does a CPT test cost in New York City?

A standard CPT sounding in New York City typically ranges from US$150 to US$240 per linear foot, depending on total footage, access conditions, and whether piezocone or seismic modules are required. Mobilization within the five boroughs adds a line item based on trucking permits and traffic control. We provide a fixed-price proposal after reviewing the site plan and depth requirements.

Can CPT be used in glacial till or bedrock?

CPT is designed for soils, not rock. In New York City’s typical profile—sand and clay overlying decomposed schist—the cone will refuse on cobble layers or competent bedrock. The refusal tip resistance (typically above 400 tsf) tells you where the bearing stratum begins. For drilling into the Manhattan schist itself, we recommend rotary coring.

How does CPT compare to standard SPT boreholes for New York City high-rises?

CPT provides a near-continuous profile (data every 2 cm) versus SPT samples taken every 5 feet. This means thin, critical layers—like a drainage silt lens in a compressible clay—are not missed. For high-rise foundations in New York City, we typically combine CPT for stratigraphic detail with targeted SPT borings for lab testing, giving you the best of both methods.
